E4 Förbifart FSE 101

Project · 2023–2026

Client Needs

At Vårby, the project required an expanded interchange to connect the E4 route with local roads while keeping traffic moving. The works included a roundabout bridge for vehicles and pedestrians, as well as a new walking and cycling route.

Infinity Mätkonsult supported the construction with surveying and setting-out services for the roads, bridge, and associated infrastructure.

Surveying and setting out

Surveying supports accurate positioning and level checks throughout road and bridge construction, helping the site teams build to the design.

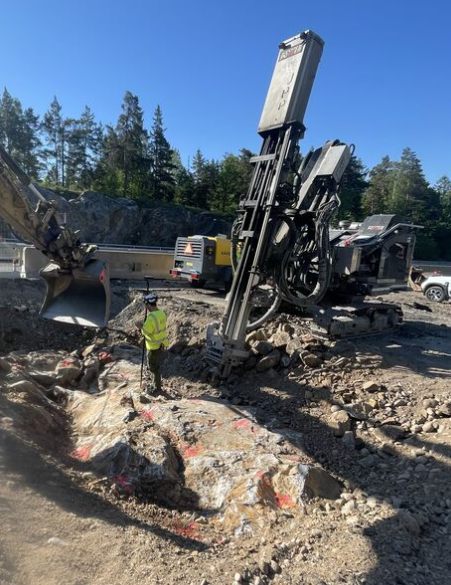

Surveyor beside a drilling rig at a rock excavation — Setting out drill positions ahead of rock excavation

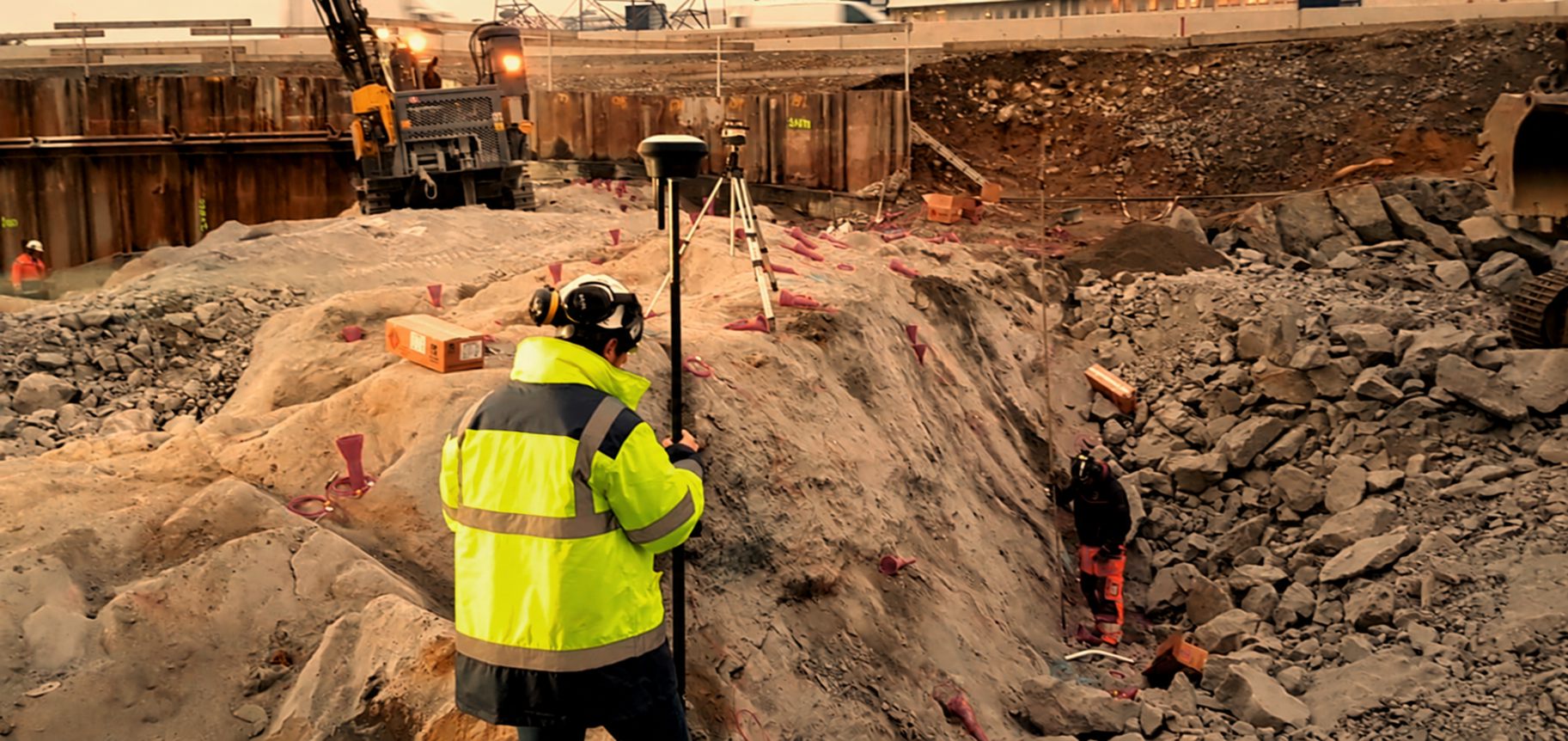

Surveyor using a GNSS rod in a rock excavation — GNSS positioning and level control in the rock excavation

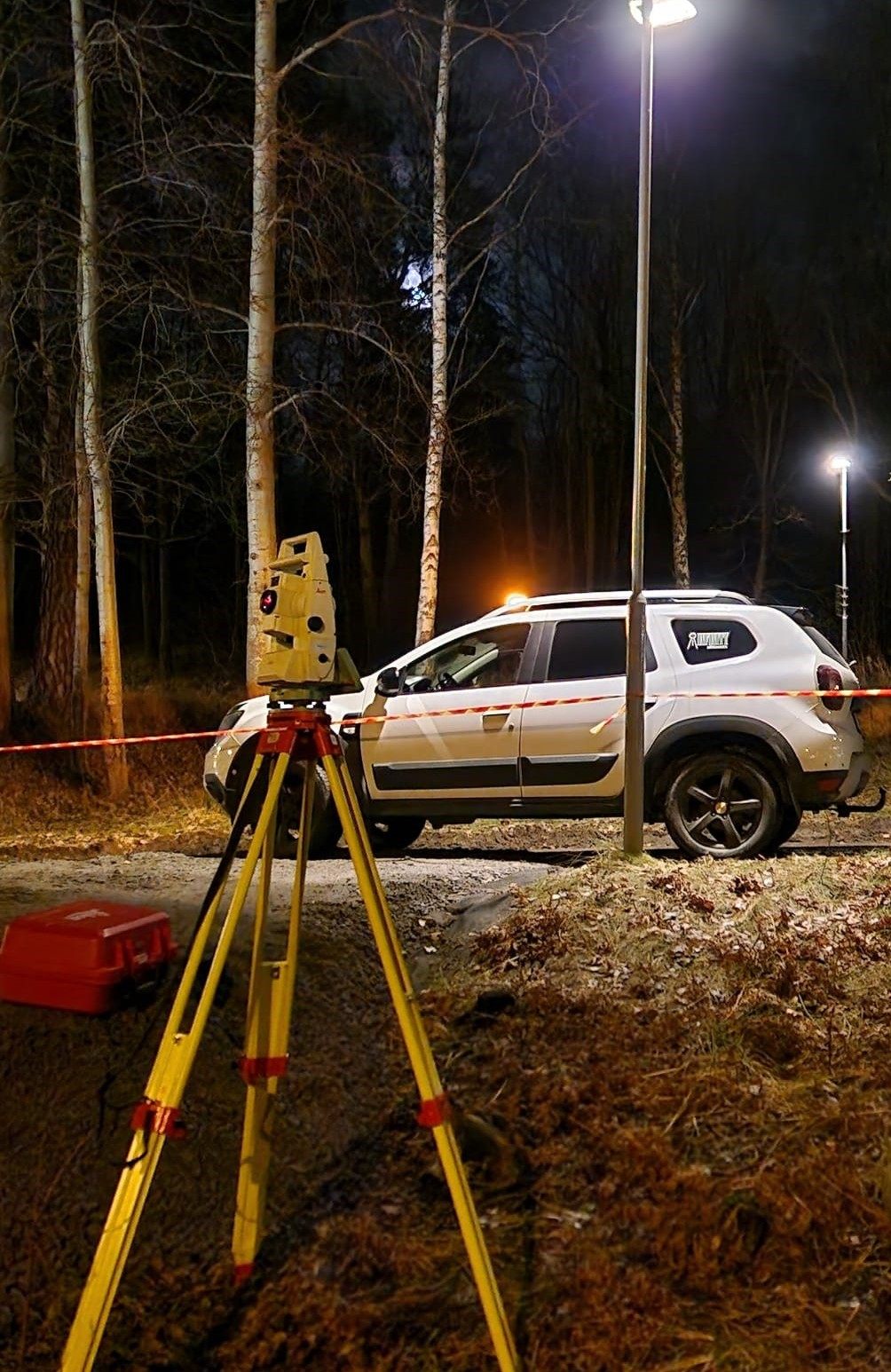

Total station set up beside a vehicle at night — Night-time total station setup for position control

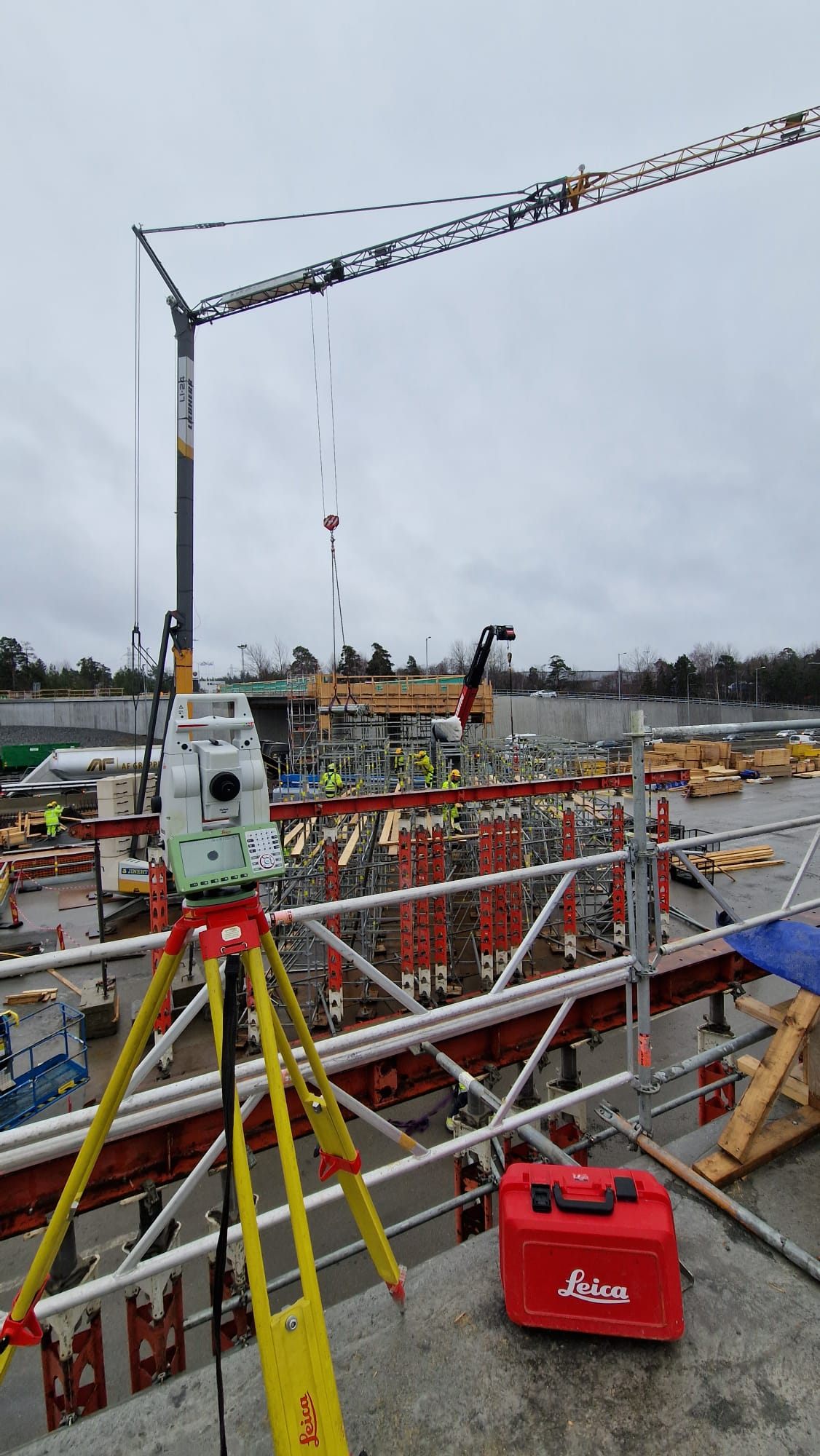

Total station set up on a bridge deck during construction — Total station monitoring bridge geometry during construction

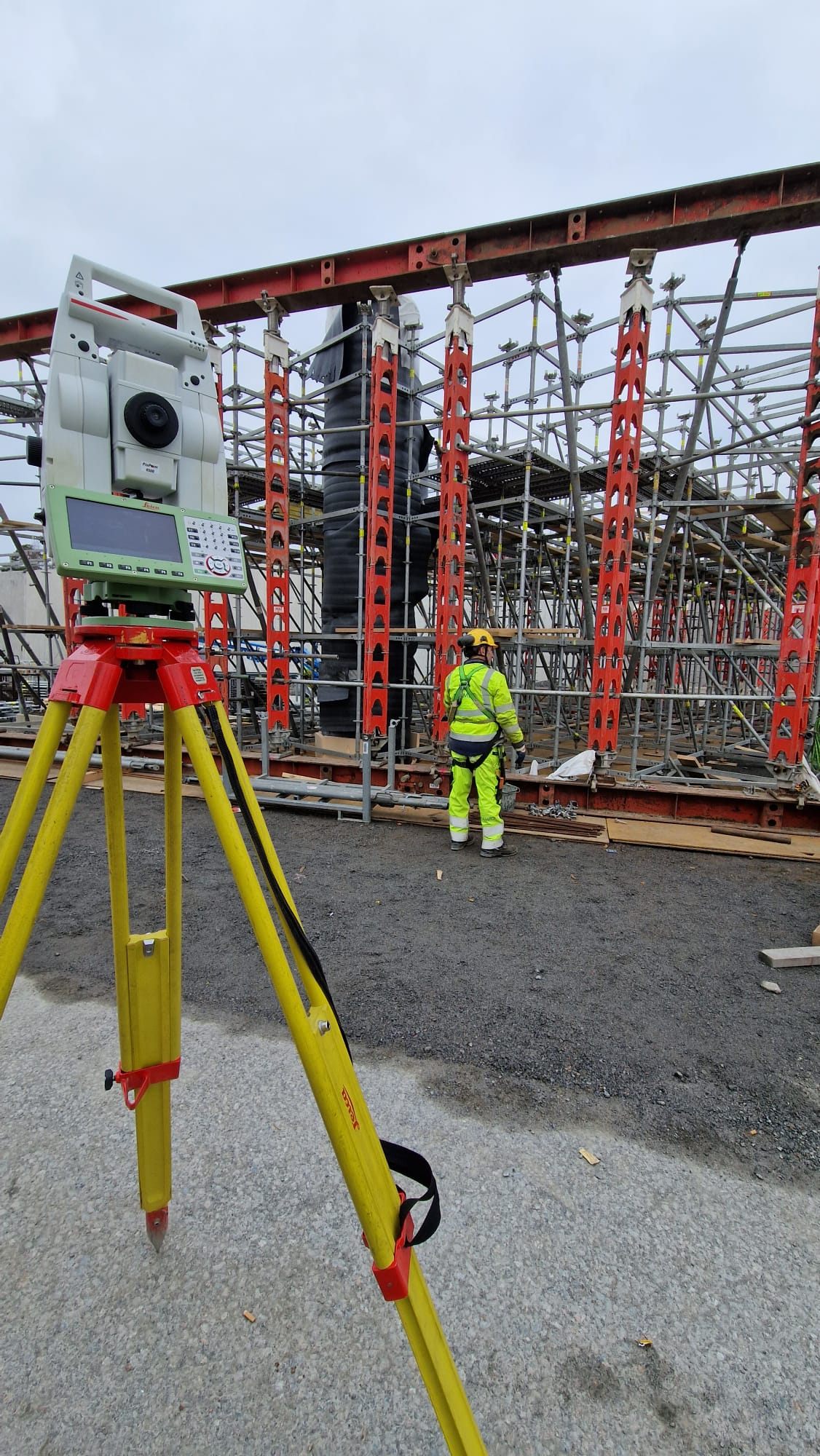

Total station beside bridge formwork and supports — Position and level checks of bridge formwork and supports

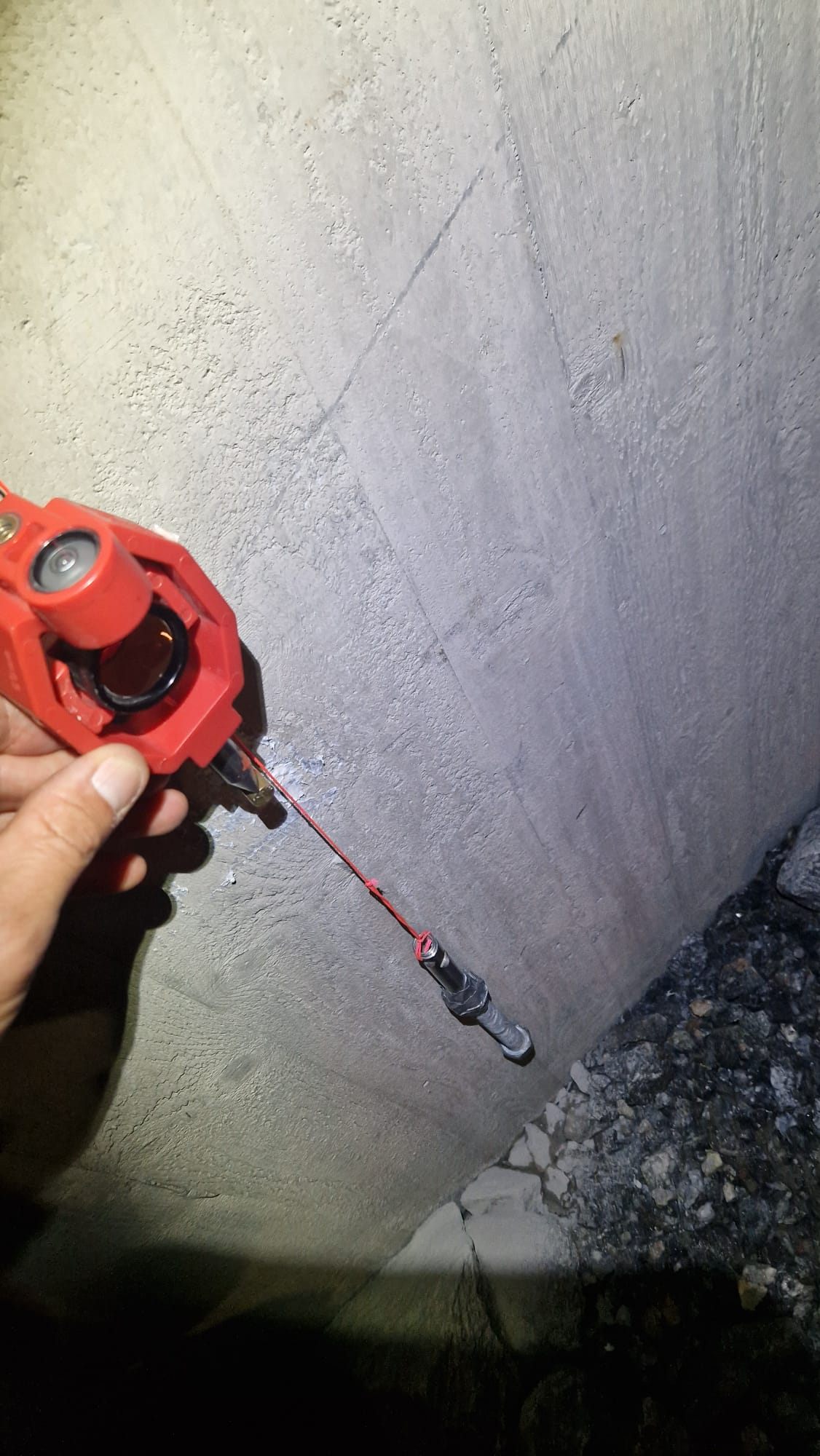

Surveying prism held against a concrete wall — Prism measurement for as-built control of concrete structures

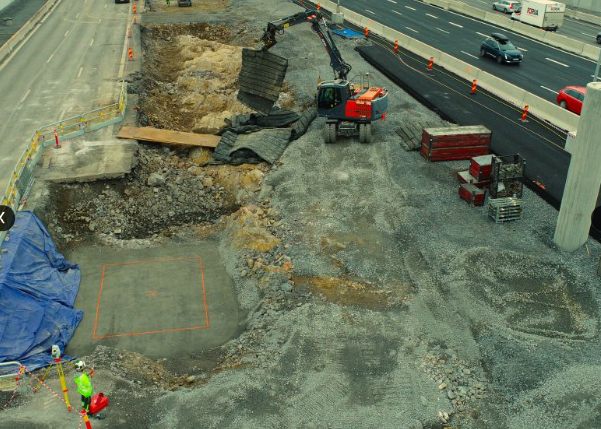

Aerial view of an excavation beside a live road — Excavation progress documented beside the live road

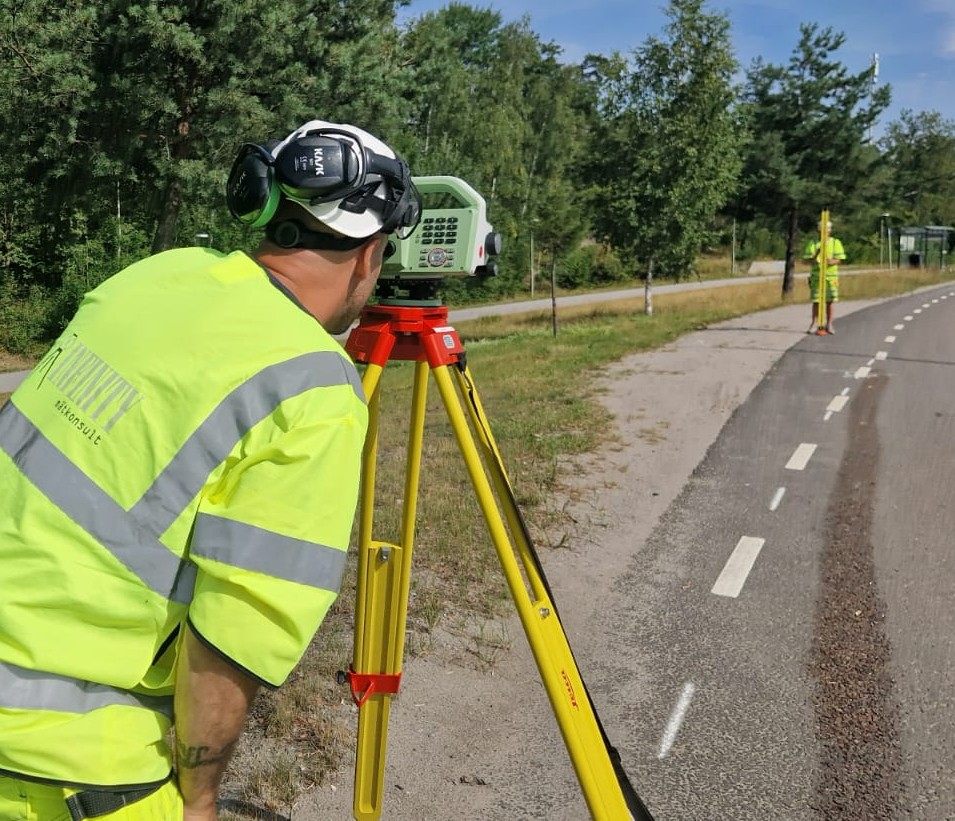

Total station set up beside a new road — Setting out and level checks along the new pedestrian and cycle path

Excavation and retaining works

Road widening and excavation works take place alongside existing infrastructure. Surveying helps coordinate levels and positions as the works progress.

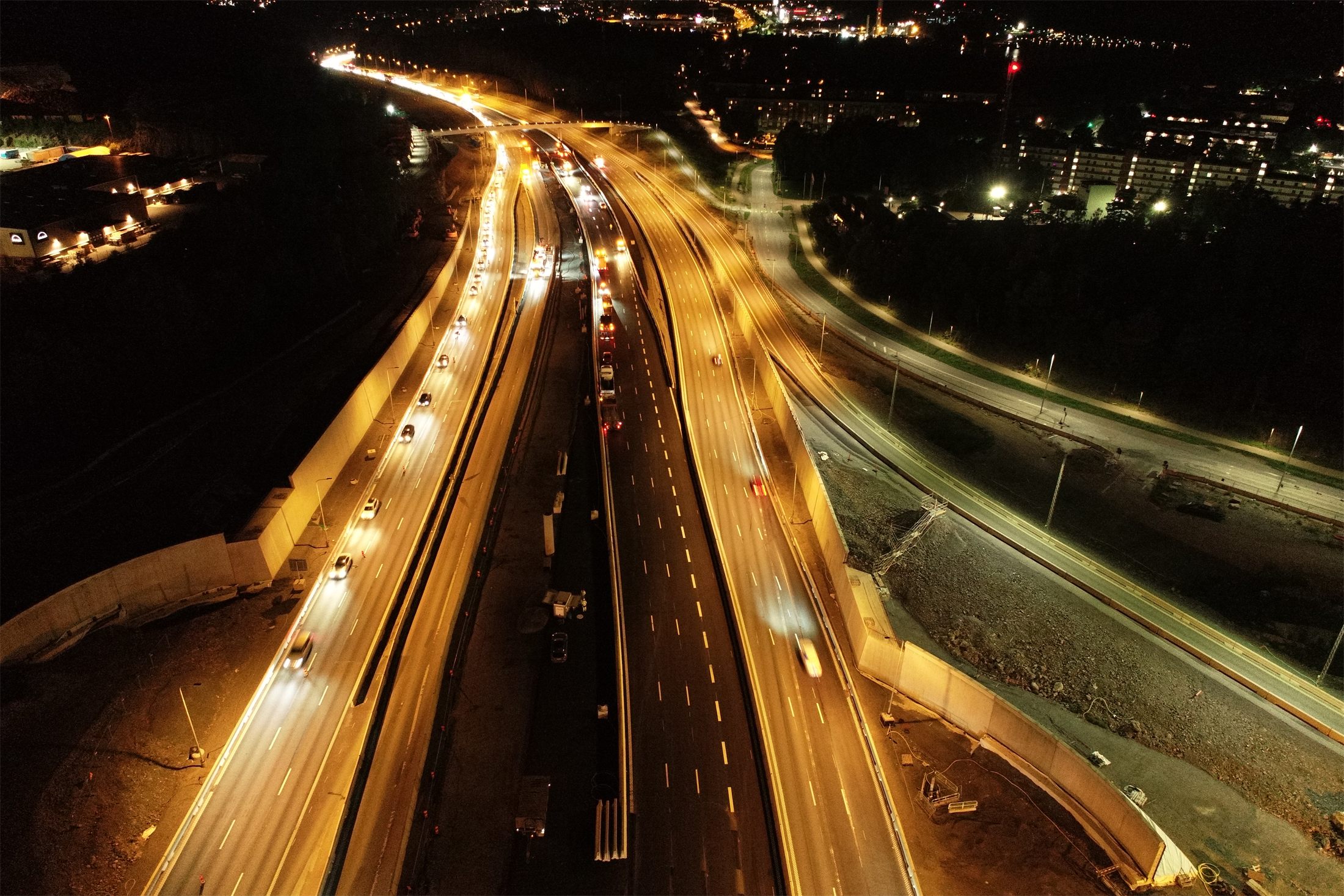

Road widening works beside live traffic at night — Road widening works running alongside live traffic after dark

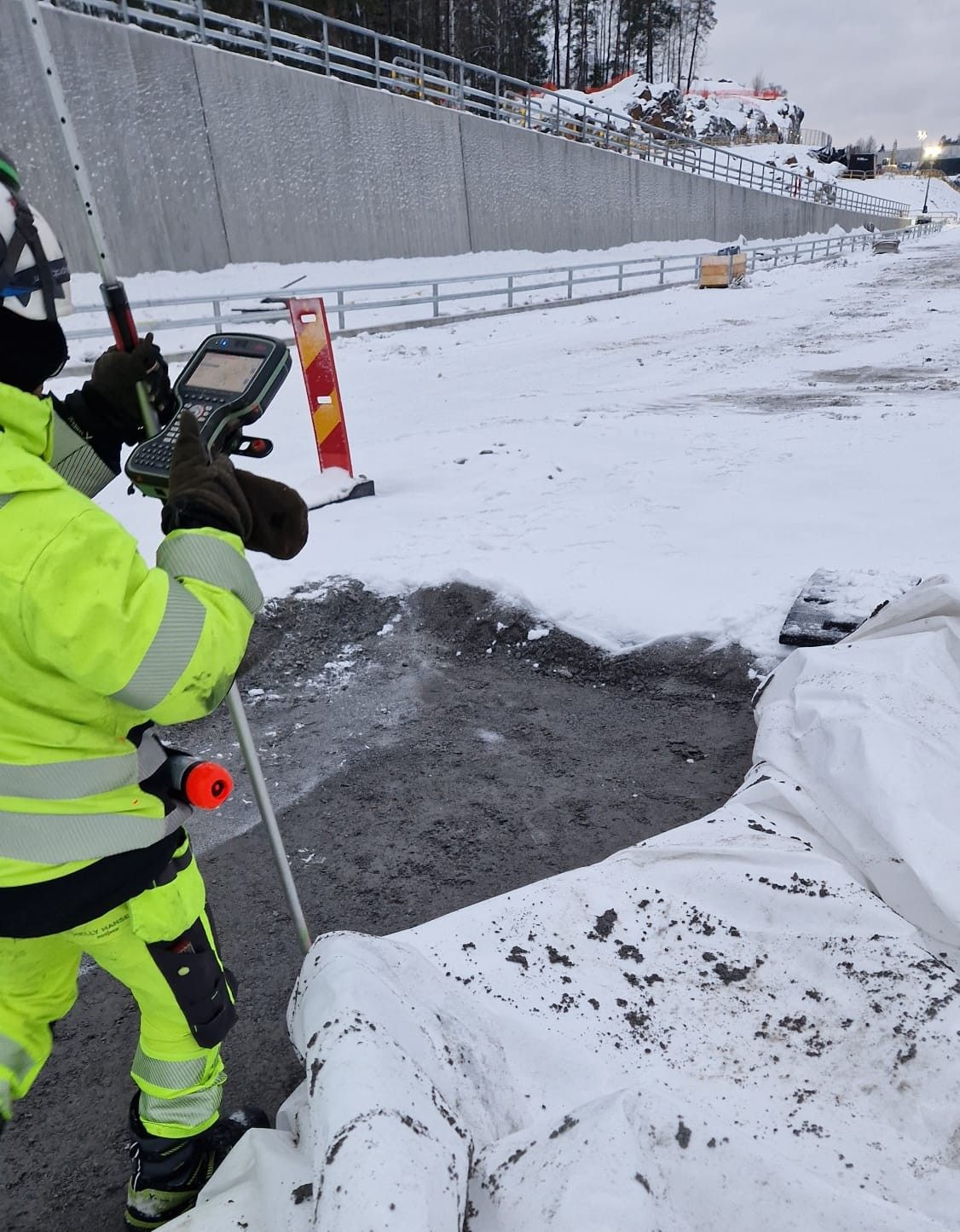

Surveyor using GNSS equipment in snowy conditions — GNSS measurements in winter conditions

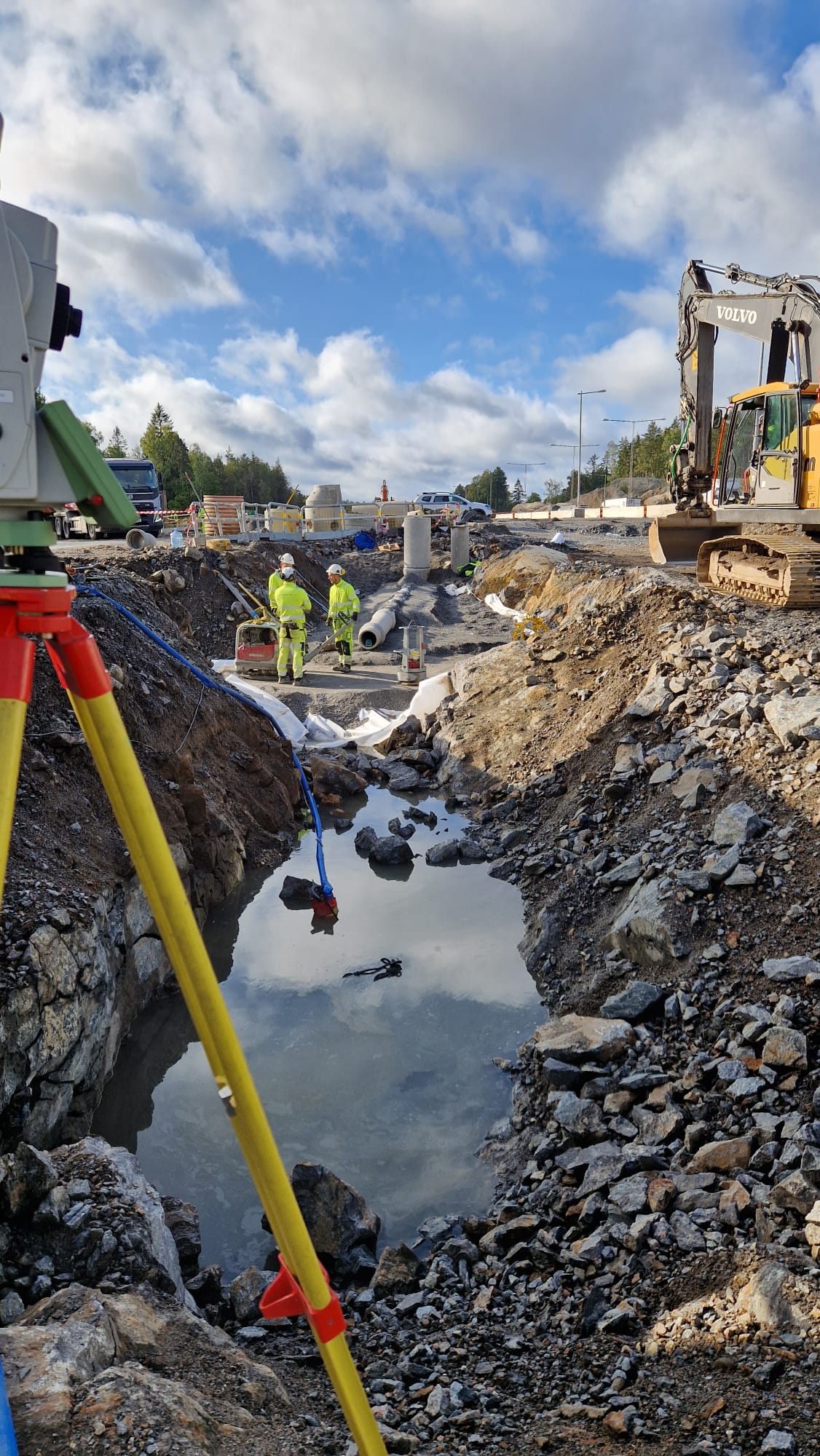

Total station in a rock excavation beside a pipe trench — Controlling levels and positions in a rock and pipe trench

Bridge construction

Bridge works progress through several stages, from formwork and casting to the completed structure. Measurements help maintain the required geometry throughout construction.

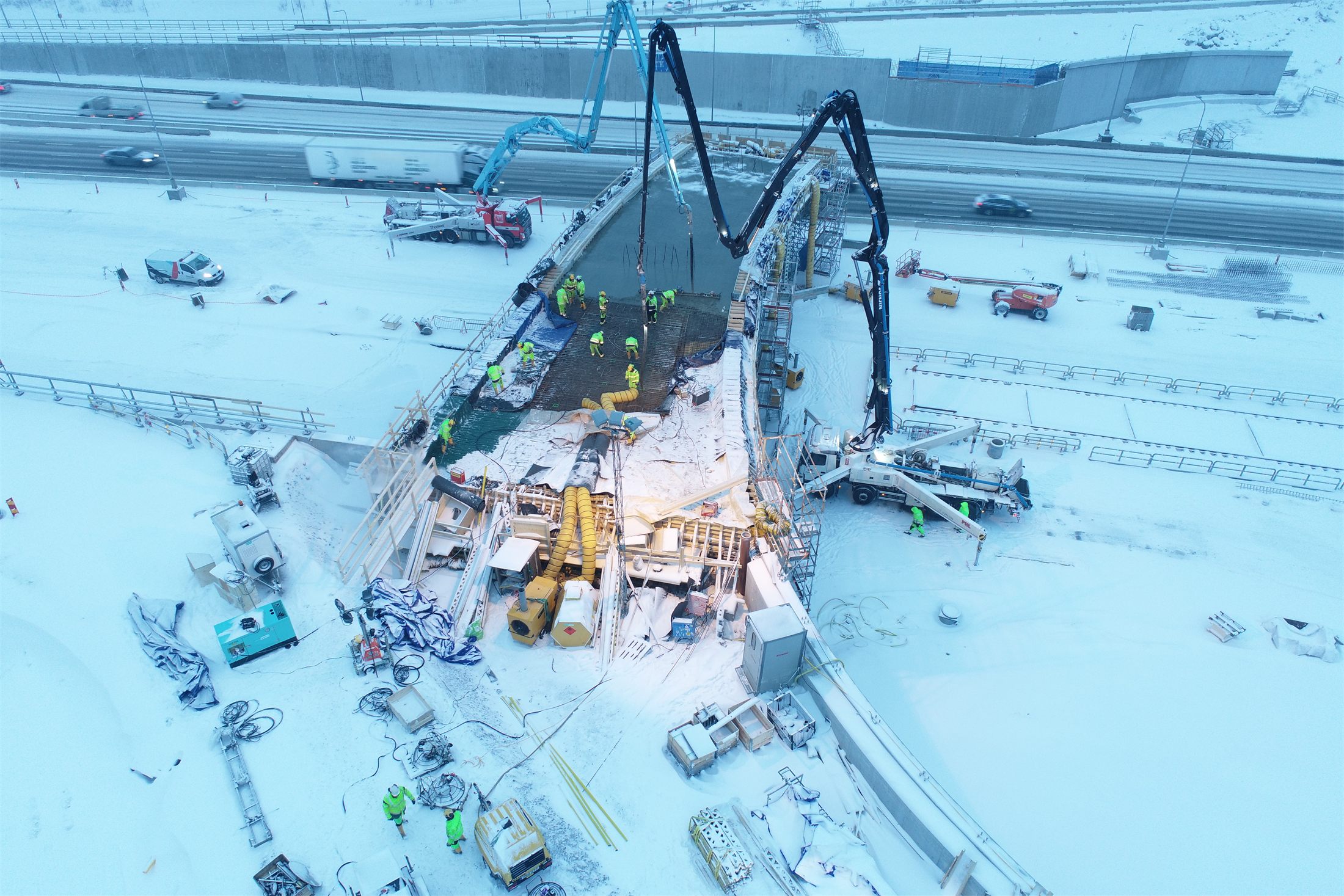

Bridge deck casting works in winter — Bridge deck casting works during winter

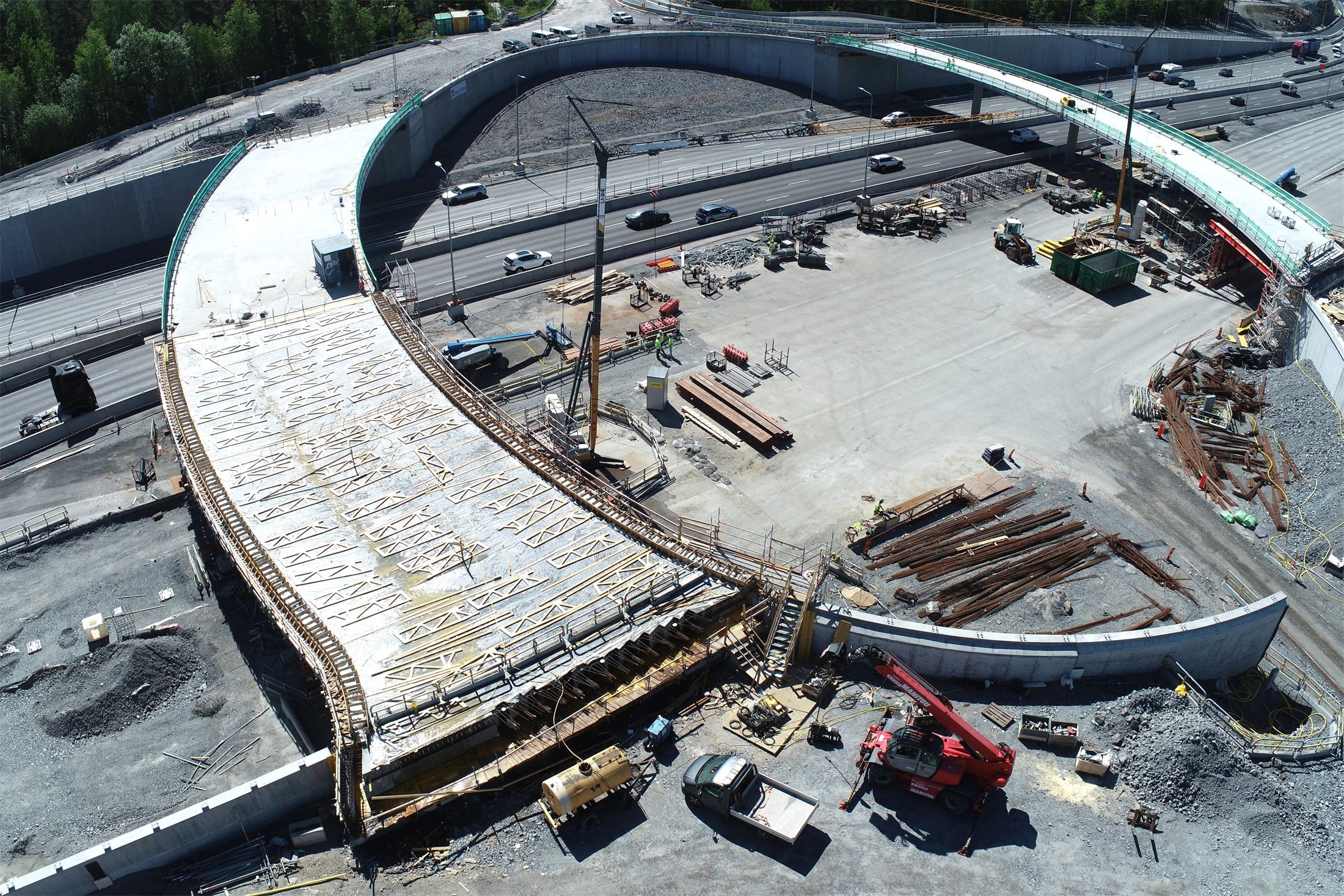

Cast bridge structure checked against the design — Cast bridge structure, geometry checked against the design

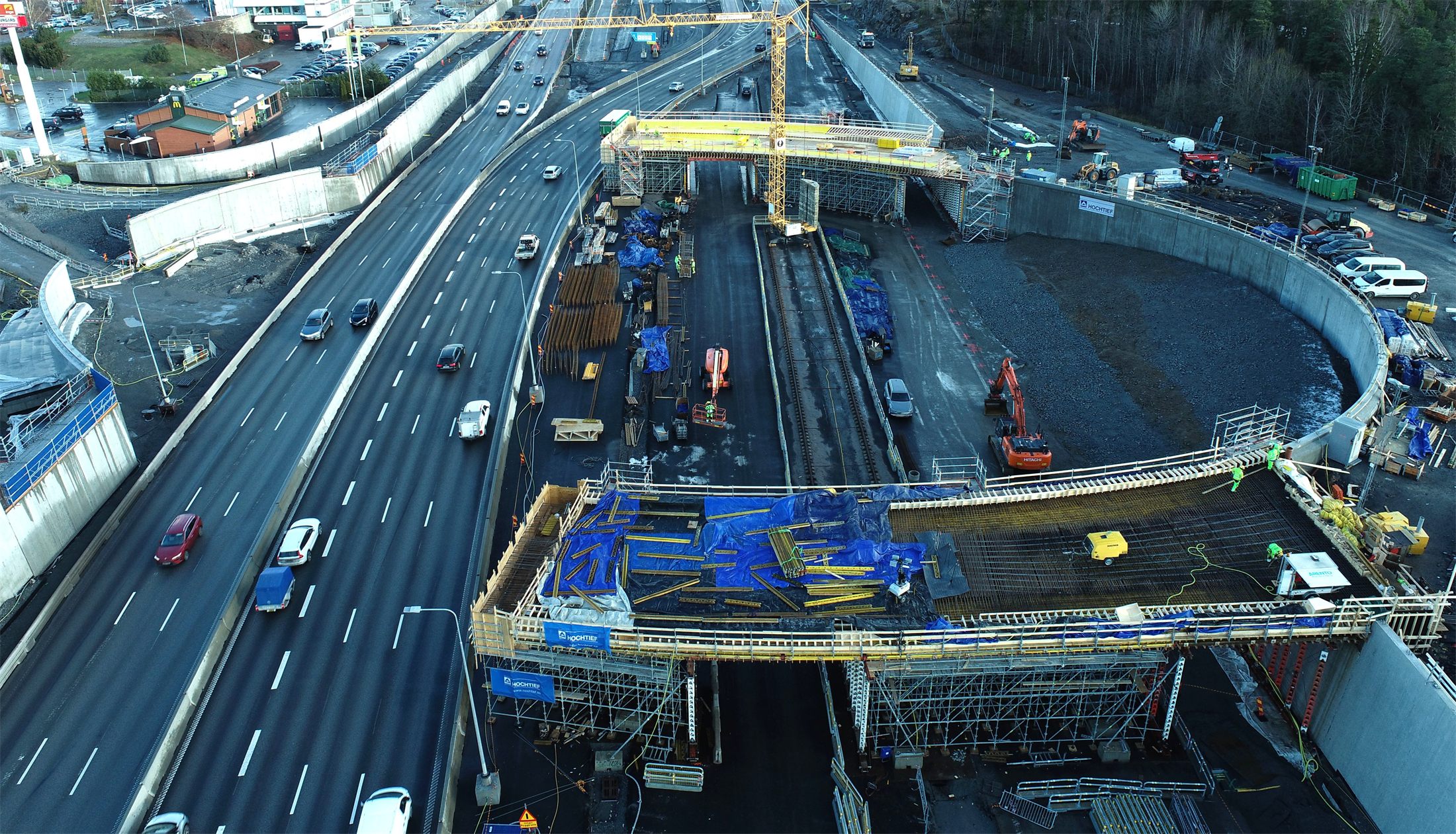

Bridge formwork and staging above live motorway traffic

Completed bridges and road connections

The project includes new bridge connections and a roundabout designed to link the road network and keep traffic moving through the area.

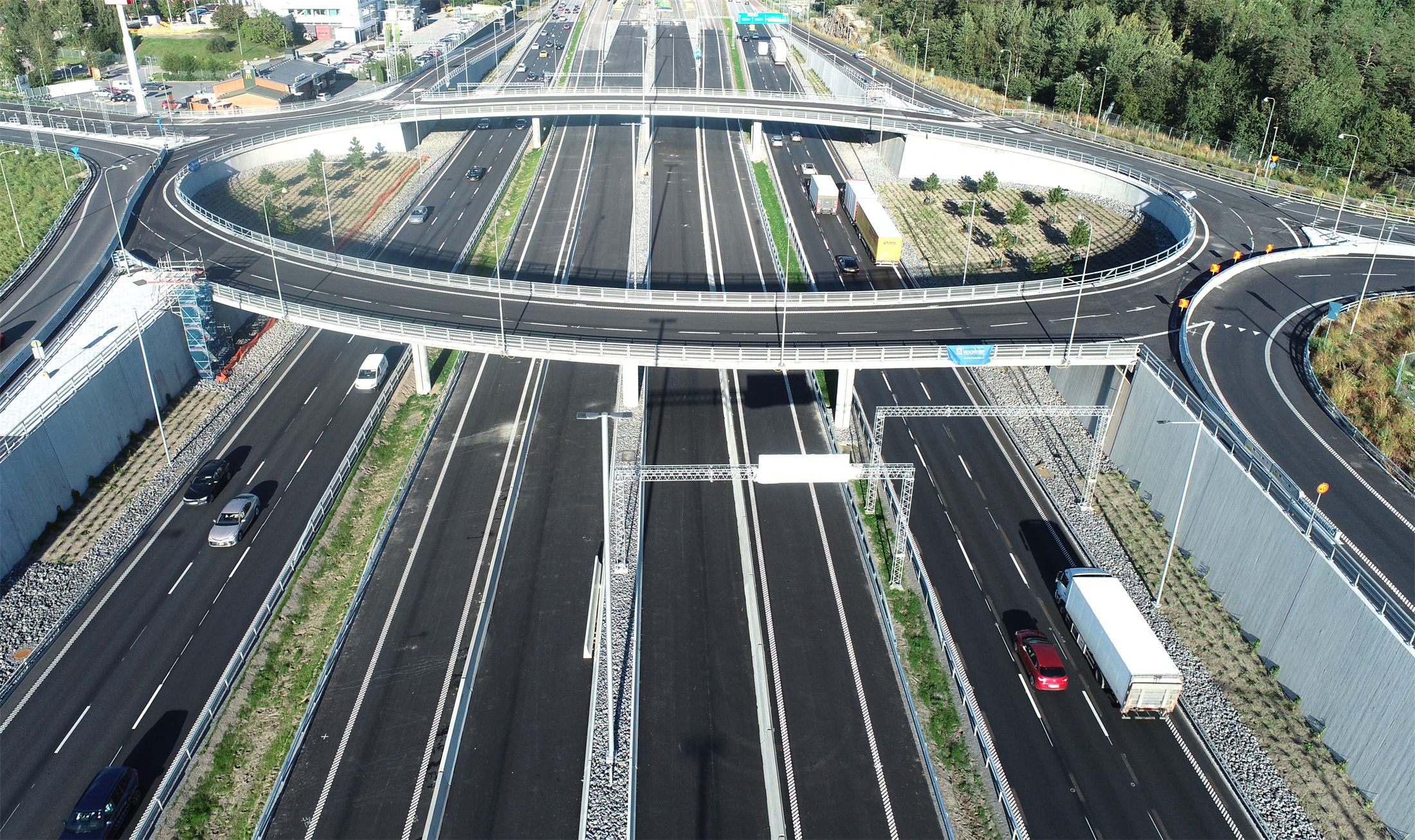

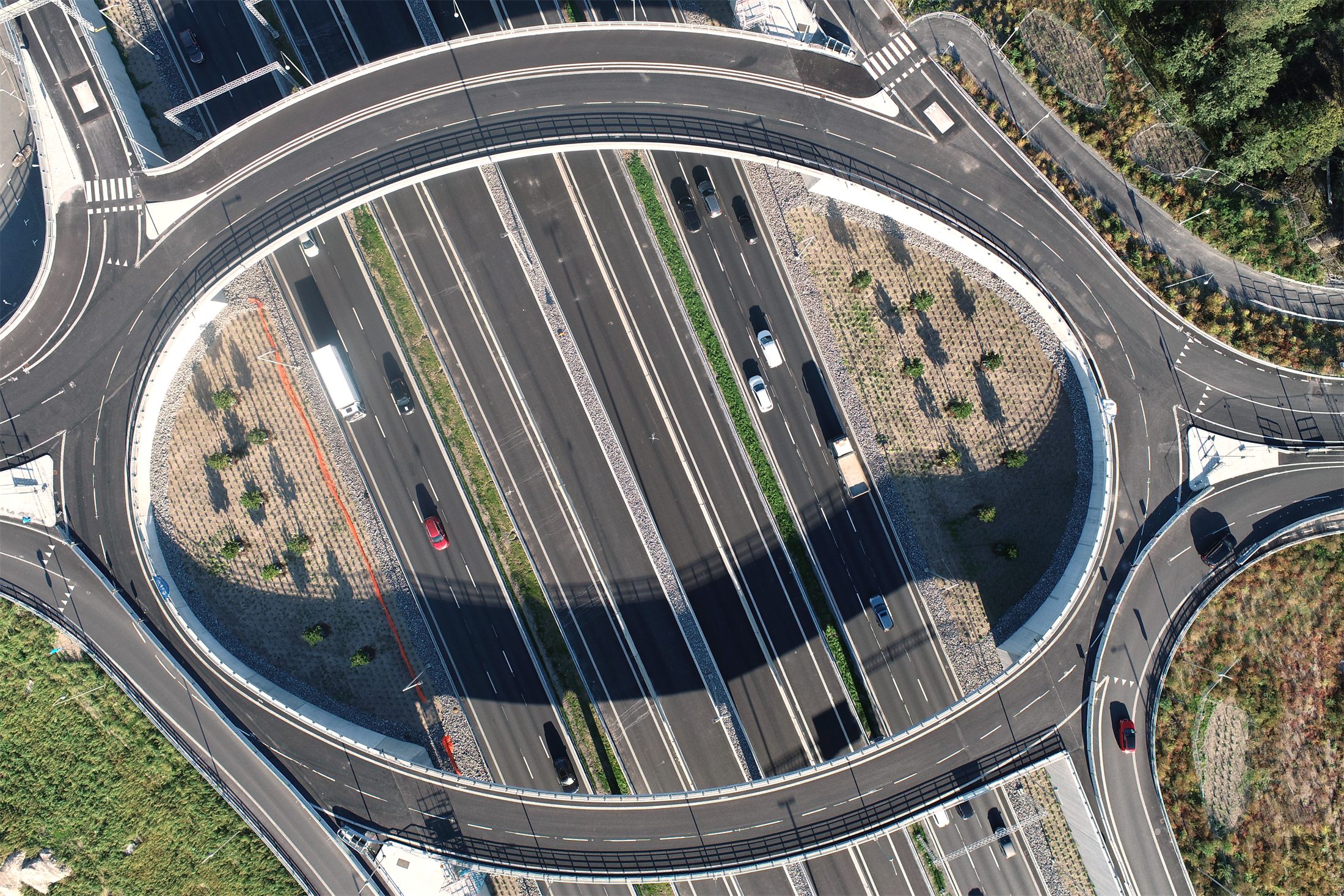

Aerial view of the roundabout bridge in its final geometry — Roundabout bridge in its final geometry

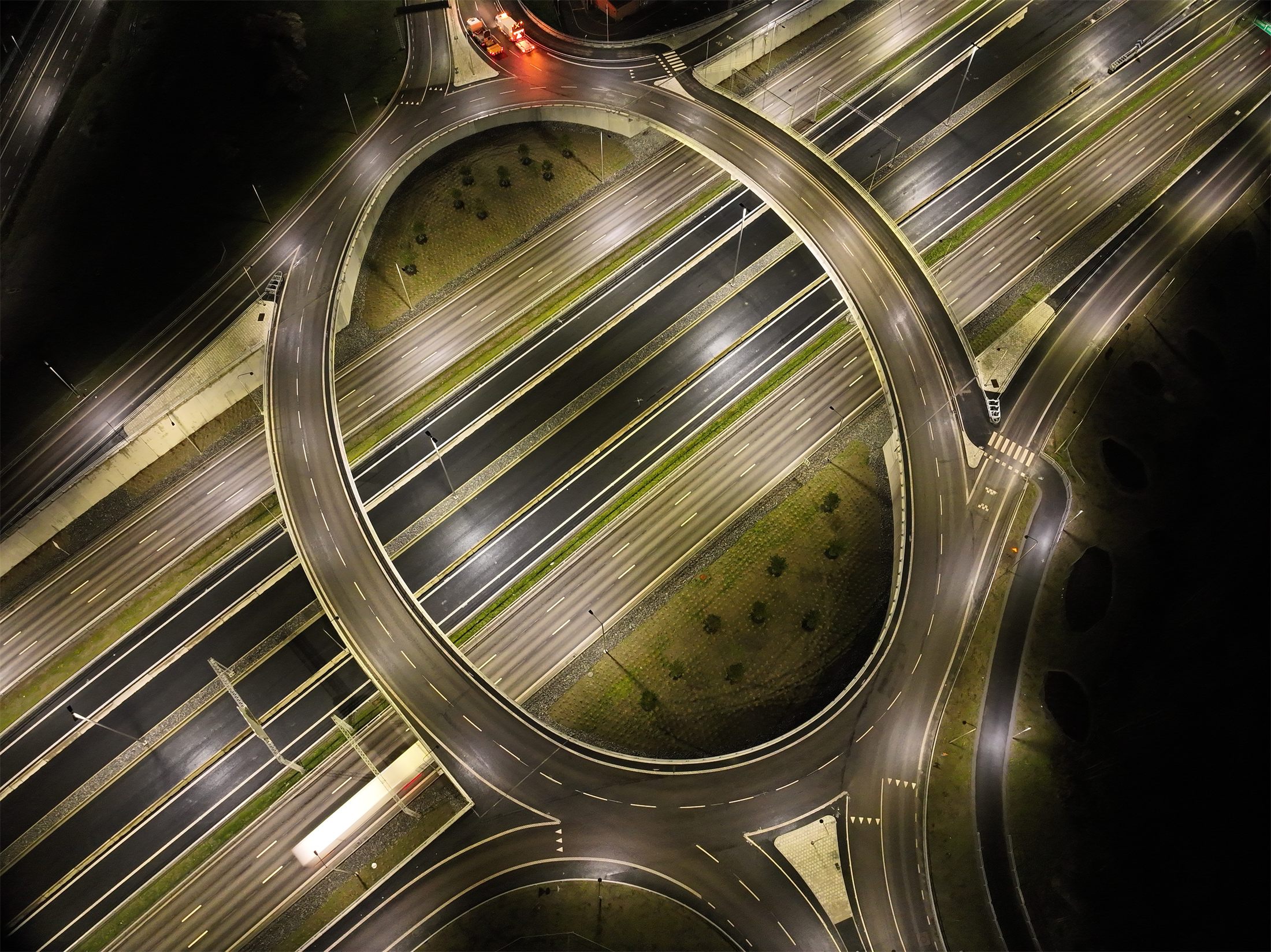

Finished roundabout and road connections in use at night — Finished roundabout and connections in use

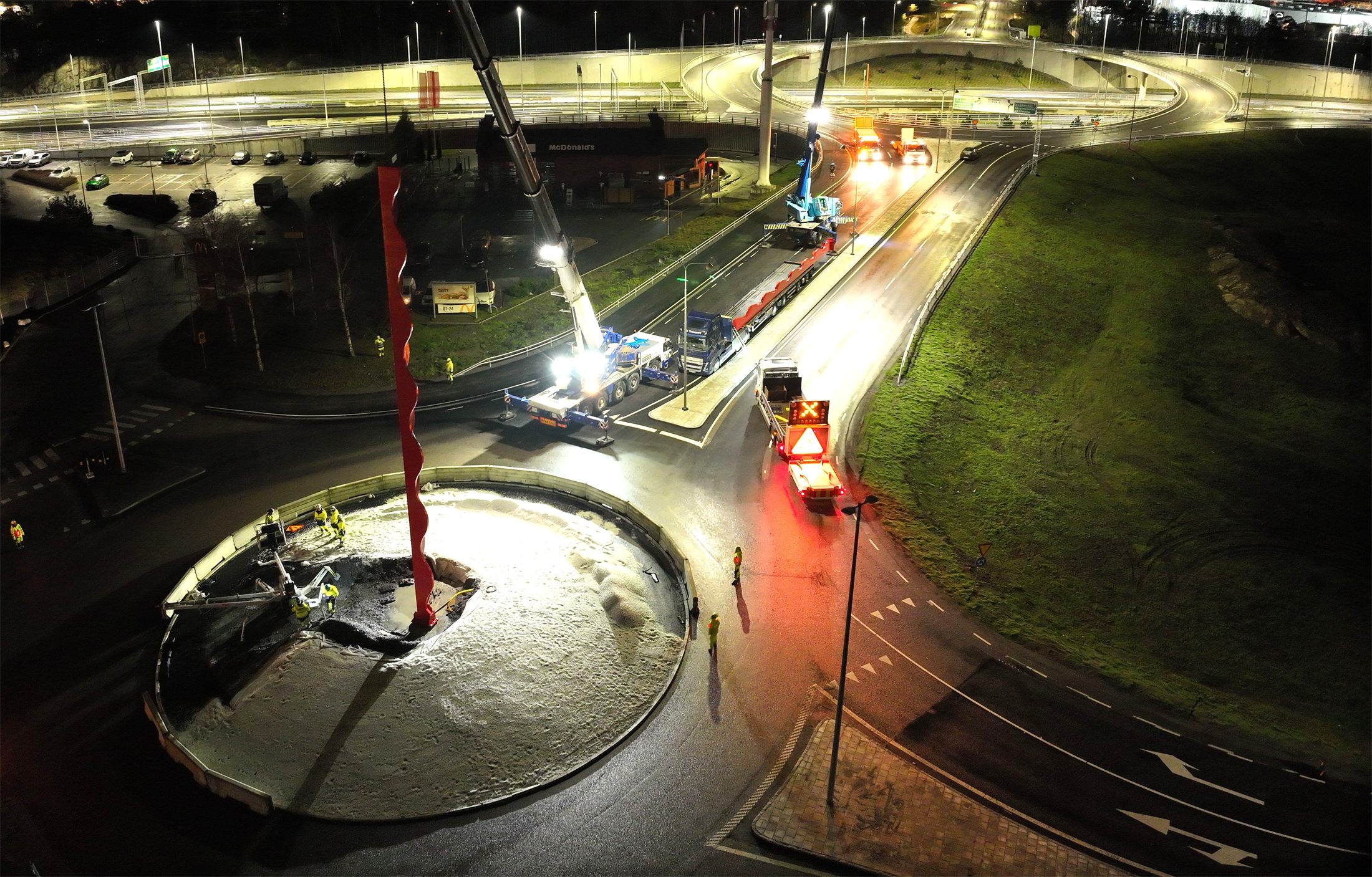

Night work at the roundabout structure — Night works at the roundabout structure

Works alongside live traffic

Construction and surveying are coordinated with traffic using the existing roads. Some activities are carried out at night or in winter conditions.

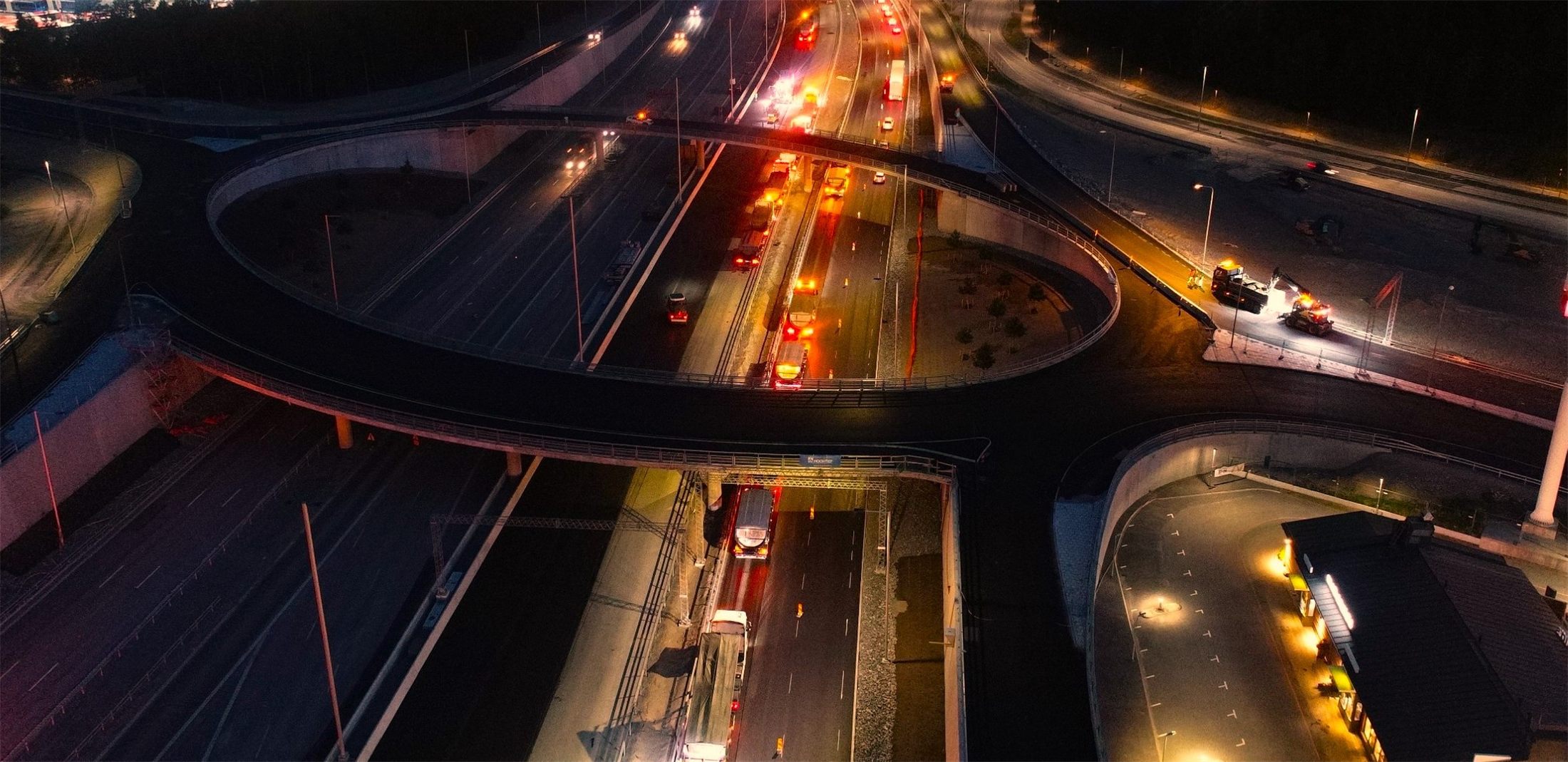

Night-time bridge works with traffic running below

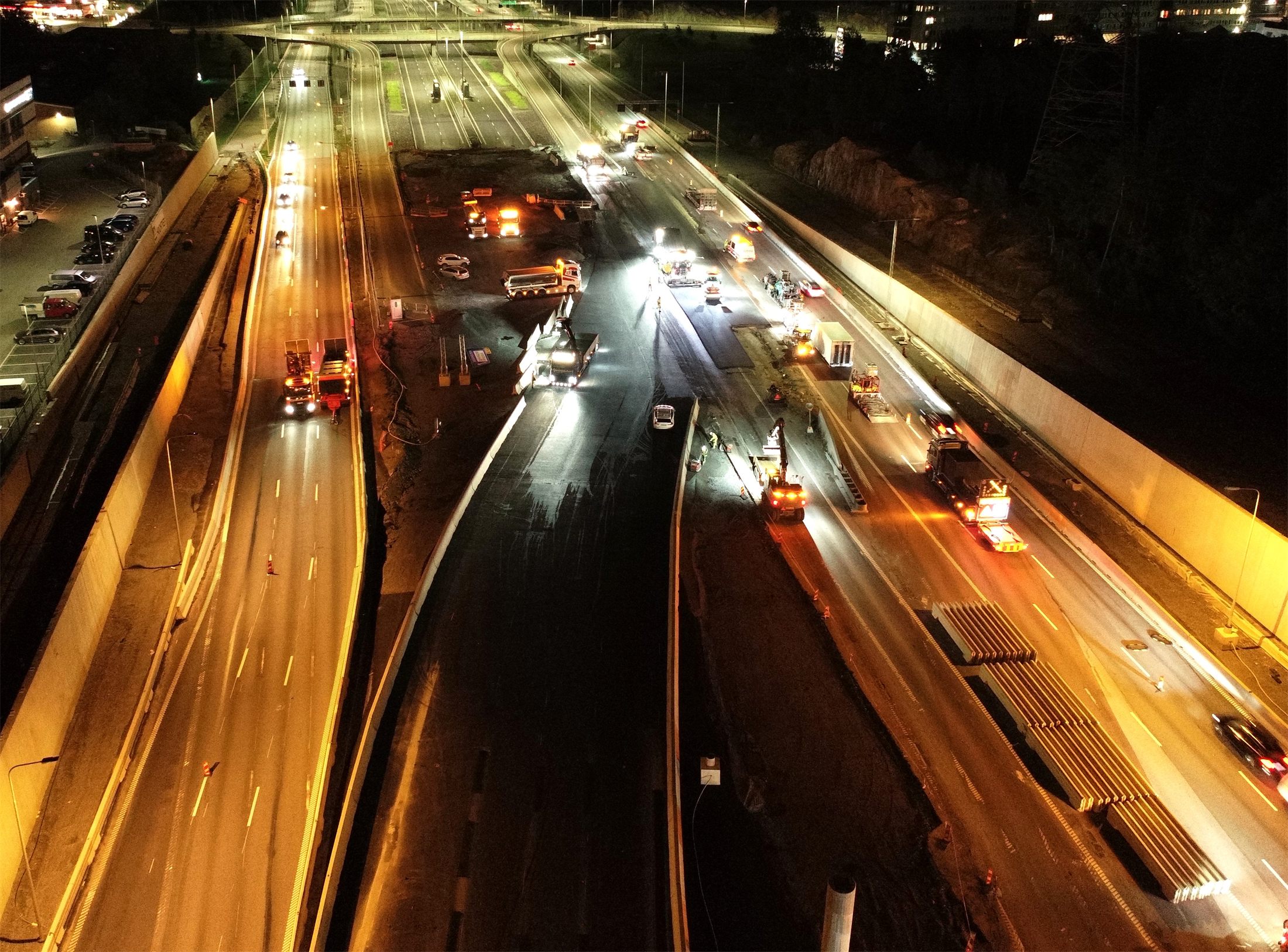

Night works with traffic diversions in place

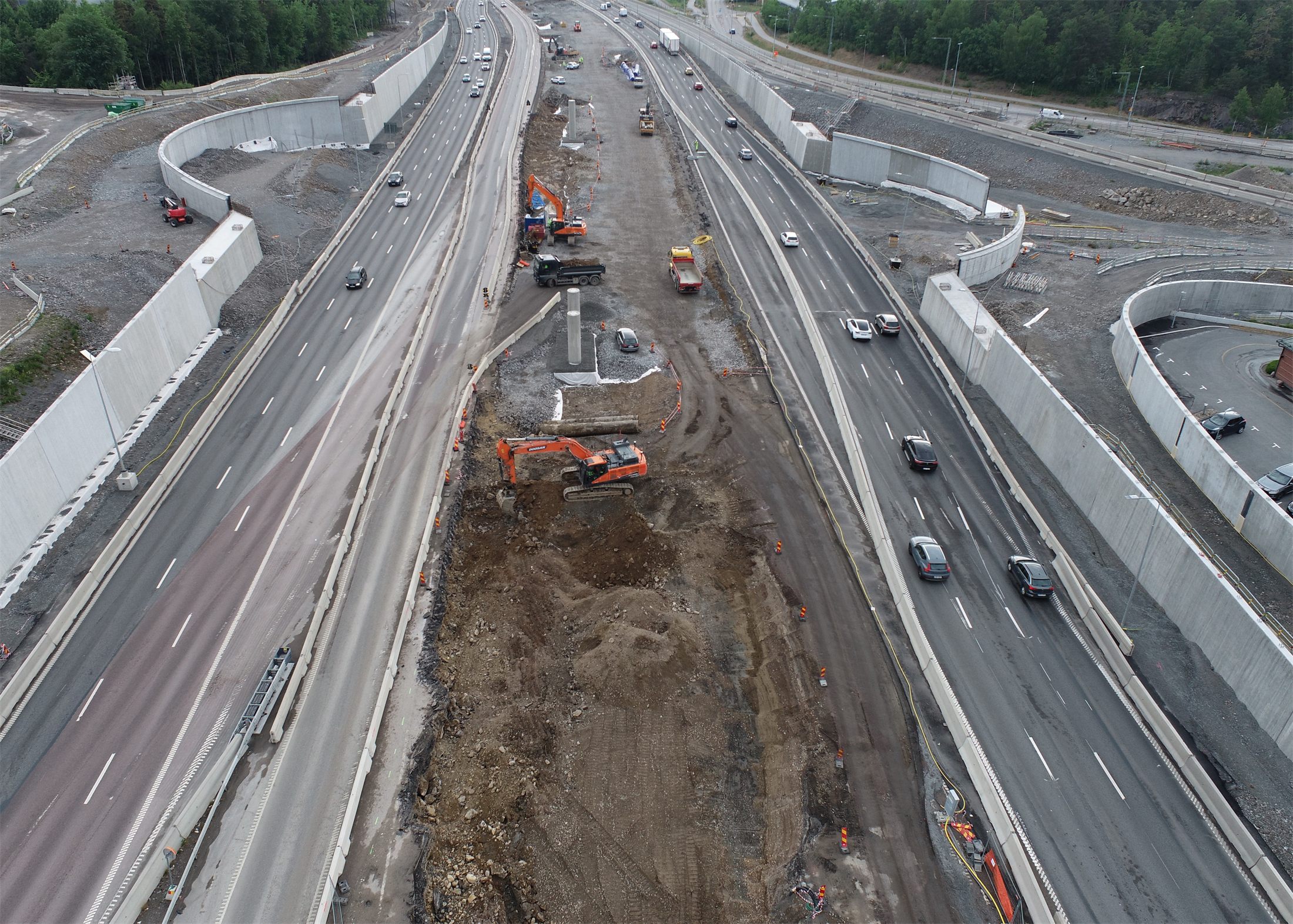

Aerial view of excavation between live carriageways — Excavation between live carriageways

Challenges

Road and bridge construction in Vårby
Widening existing roads
Construction of a roundabout bridge for vehicles and pedestrians
Building retaining walls
Soil and rock excavation, including blasting
Construction of a new walking and cycling route
Traffic diversions to keep vehicles moving during construction

Project FSE 101 Executed Quantities

Rock Excavation: 40,000 m³

Soil Excavation: 130,000 m³

Concrete: 20,000 m³

Services Provided by Infinity Mätkonsult AB

Data extract from design and models
Setting out data from design specifications
Measurements for as-built drawings
Network measurements and maintenance
Control measurements for settlement - monitoring
3D modeling for machine control
Quantities calculation based on as-built and design measurements according to AMA 10 & MER 13
Orthophoto maps and photos using drone technology
Quantities estimation based on drone flights (stock piles volumes)
Documentation and Monthly payment certificates works

Certification Note

Our surveyors are certified by Trafikverket:

BEHÖRIGHETSINTYG för Mätningstekniska arbeten I Trafikverket Klass 1.
